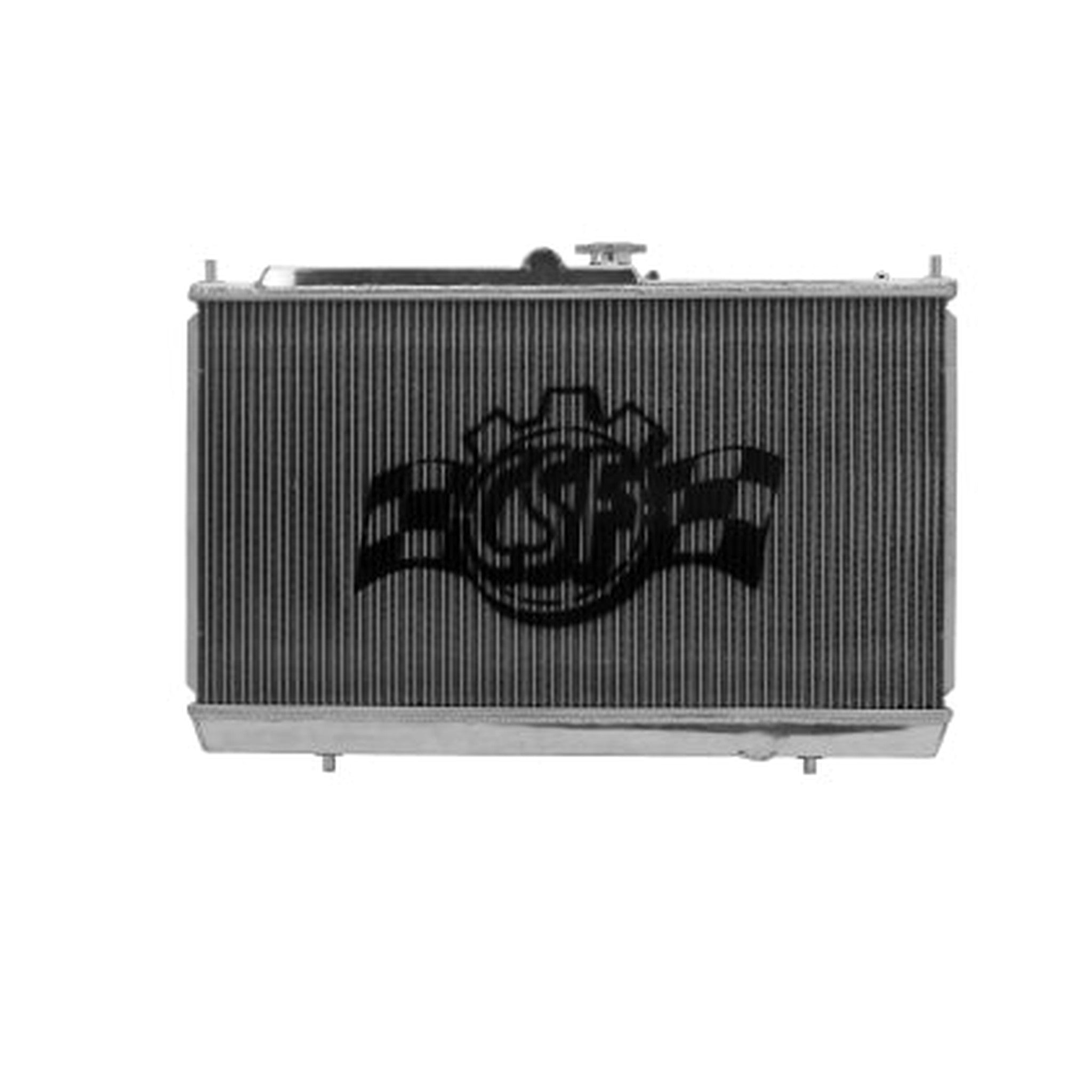

CSF Aluminum Radiator Mitsubishi Evo 8 and 9 2003-2006 | 3163

Fitment Information:

2003-2005 Mitsubishi Evo 8

2006 Mitsubishi Evo 9

Features:

The CSF All-Aluminum Radiator is built to protect your Evo 8 or 9 engine under extreme driving conditions. This radiator is designed to perform on track, drifting, and drag racing. All CSF High-Performance Radiators Undergo a Rigorous Testing Process During Development, Including Burst Pressure, Thermal Cycle, Vibration Testing, and Salt Spray Testing.

• Finished with CSF's Show-Stopper mirror polish process
• CAD/CAM designed

• Racing-style aluminum drain plug

• Brazed in a controlled atmosphere brazing (CAB) furnace- the preferred process for aluminum

• ISO 9001/9002 certification

• Military-grade (special clad) aluminum used for tubes, fins, and headers

• Plates and side brackets meet JIS 3003 specifications
• CNC-machined fittings

• TIG welded

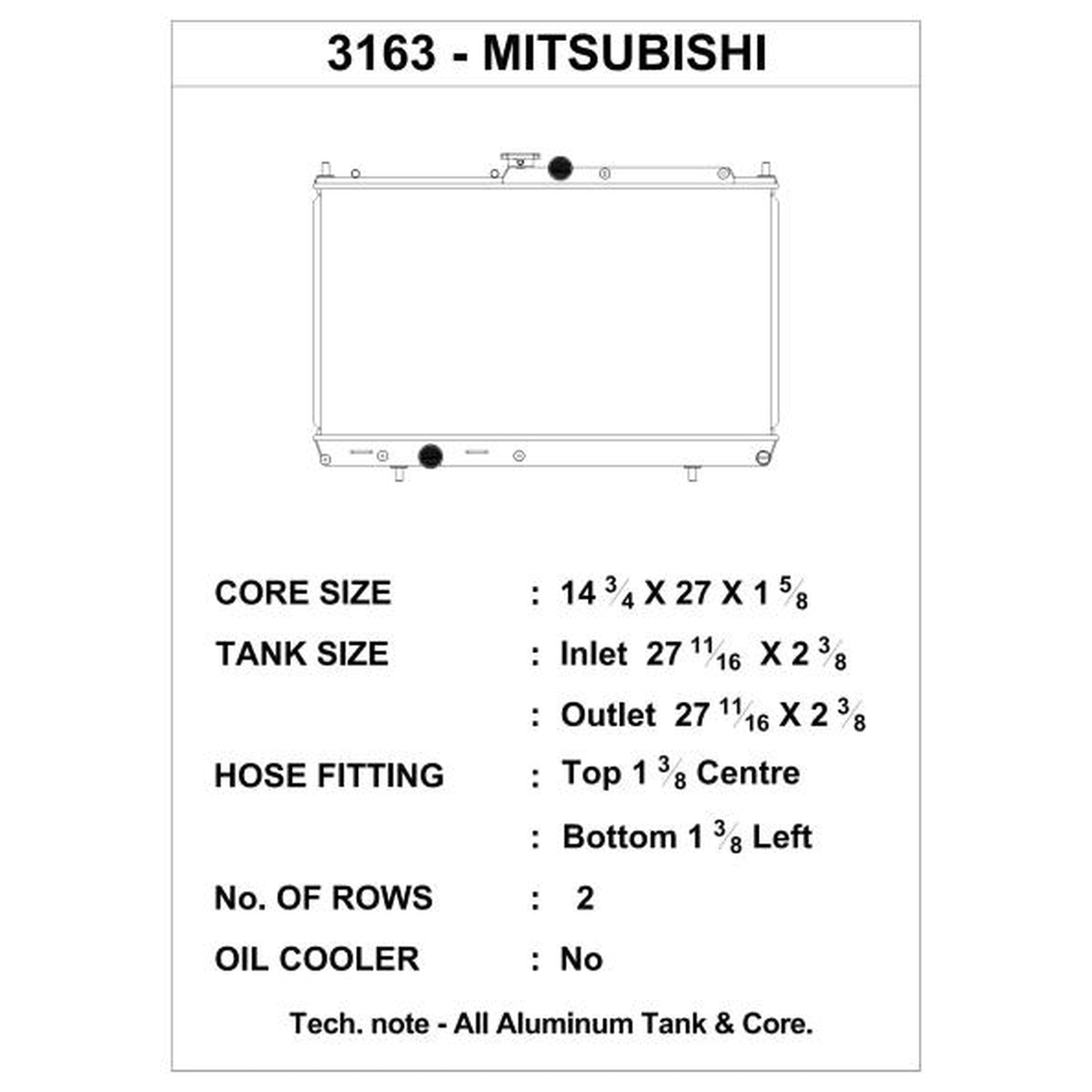

Specs:

• Core Depth: 2.05" in
• Core Height: 14.76" in
• Core Width: 27.19" in
