Fumoto M16-1.5 Engine Oil Drain Valve SX Series Position Adjustable 2015-2025 WRX | F108SX
Fumoto M16-1.5 Engine Oil Drain Valve SX Series Position Adjustable 2015-2025 WRX | F108SX
Fumoto M16-1.5 Engine Oil Drain Valve SX Series Position Adjustable 2015-2025 WRX | F108SX
Fumoto M16-1.5 Engine Oil Drain Valve SX Series Position Adjustable 2015-2025 WRX | F108SX

Fumoto M16-1.5 Engine Oil Drain Valve SX Series Position Adjustable 2015-2025 WRX | F108SX

Rated 5.0 out of 5
Based on 27 reviews
SKU: FMO-F-108SX
Availability: 21 In Stock
Product Type: Engine Drain Plugs
$35.95
$39.95
$35.95
Save $4.00

Regular Price: $39.95 - Instant discount: $4.00 = $35.95


Subtotal: $35.95
🕒 Order within hours minutes
📦

Fasktrak

$7.99

Estimated: ,

🚚

Express

Starts at $8.99

Loading...

Fastest

Starts at $10.99

Loading...

Fitment Information:

FA Series engines

2015-2025 Subaru WRX

2013-2016 Scion FR-S

2013-2020 Subaru BRZ

2014-2018 Subaru Forester XT

2010-2012 Subaru Legacy GT

2013-2014 Subaru Crosstrek

Features:

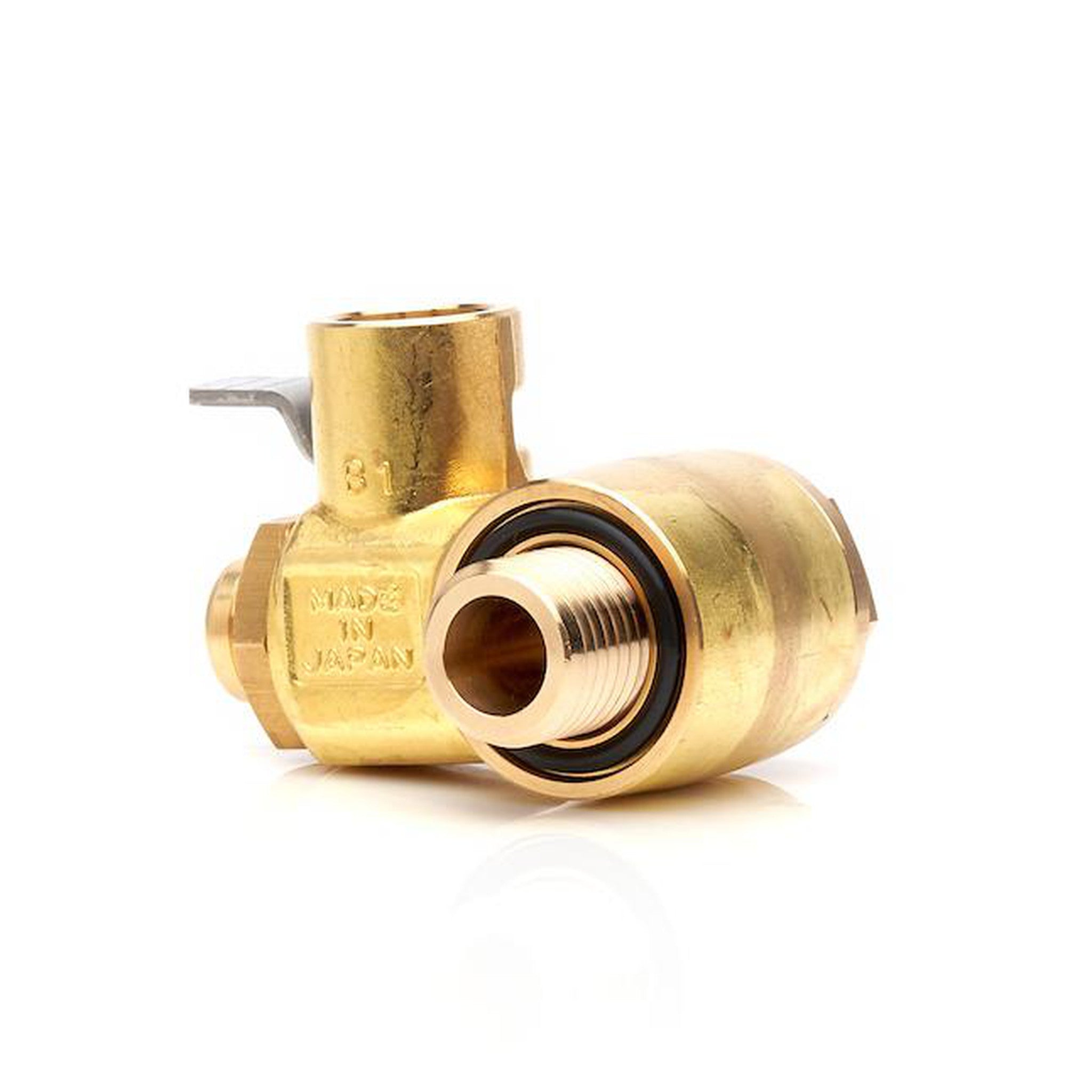

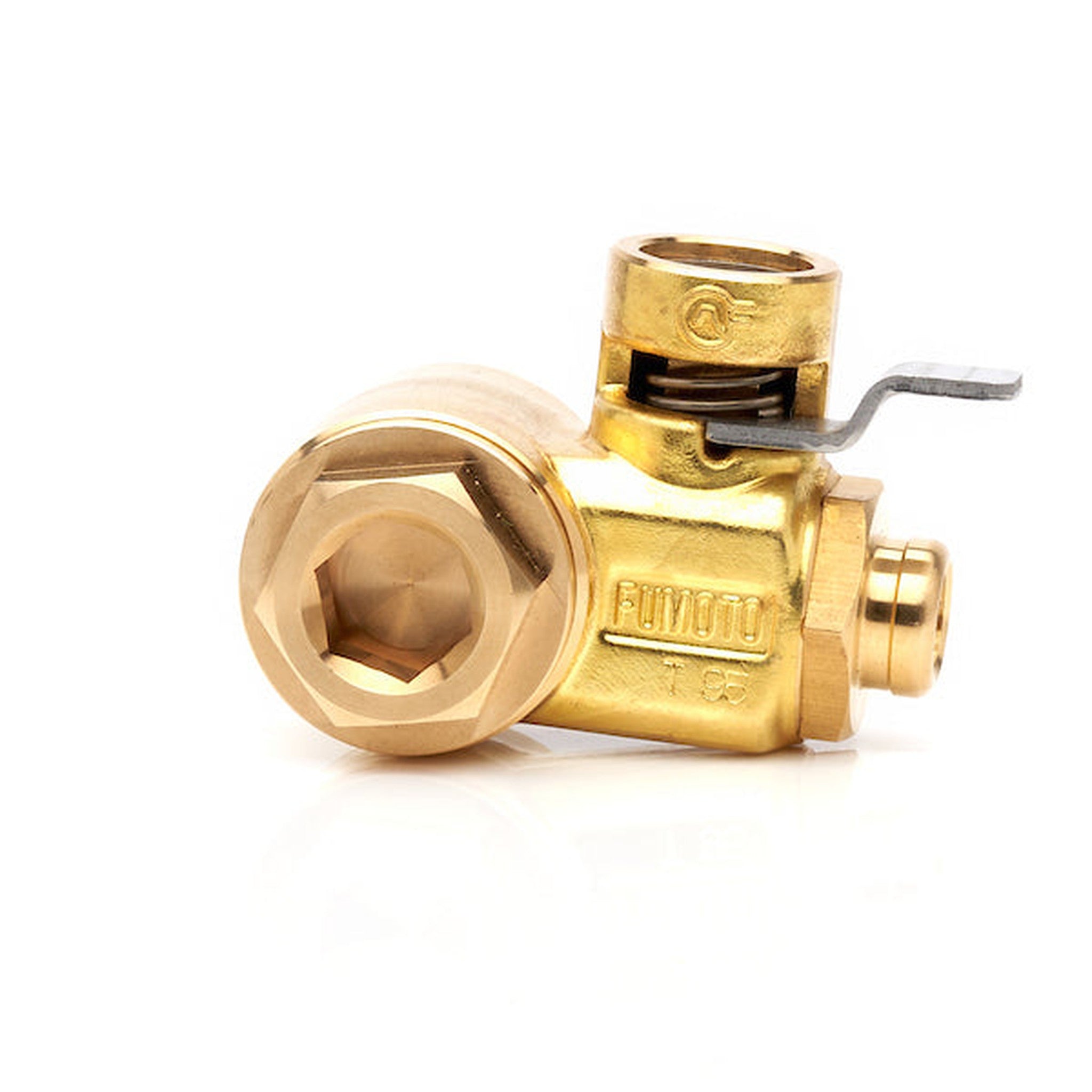

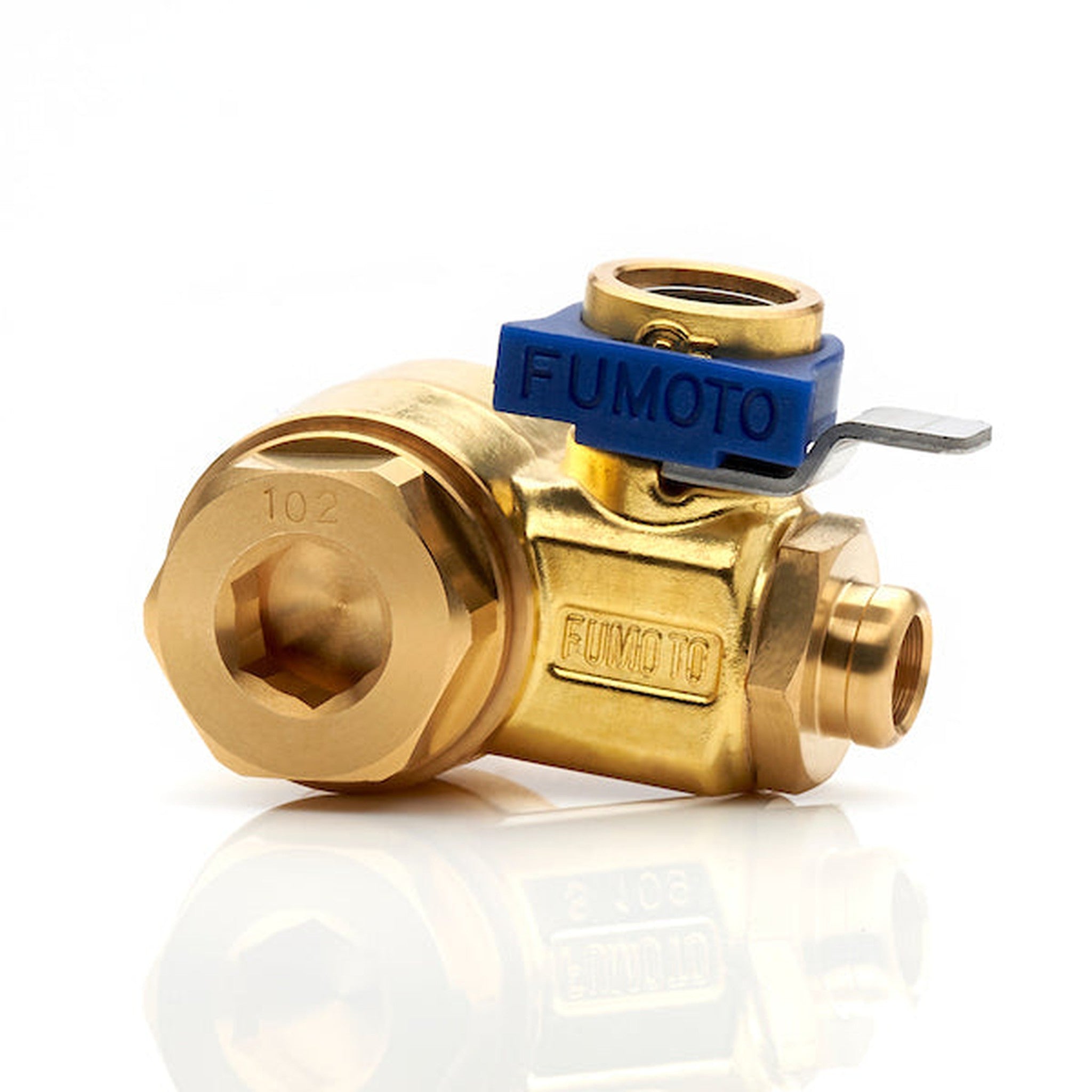

The new Fumoto® SX-series is comprised of two distinct yet fully integrated parts: the through bolt and oil-flow control body. These features allow the valve to be positioned as you choose for even more convenient and effortless oil changes. The new ergonomic control lever makes the valves easier to operate and the versatility of the SX series allows installation without an adapter on some cars that may have previously required one.

All SX series valves offer a short 5mm nipple which allows you to attach a hose for convenient draining. Constructed of forged brass and stainless steel to exacting Japanese specifications, SX series valves are designed to provide a lifetime of dependable and reliable service.

  • The valves come with a 5mm (0.2" inch) short nipple to attach a hose for drainage

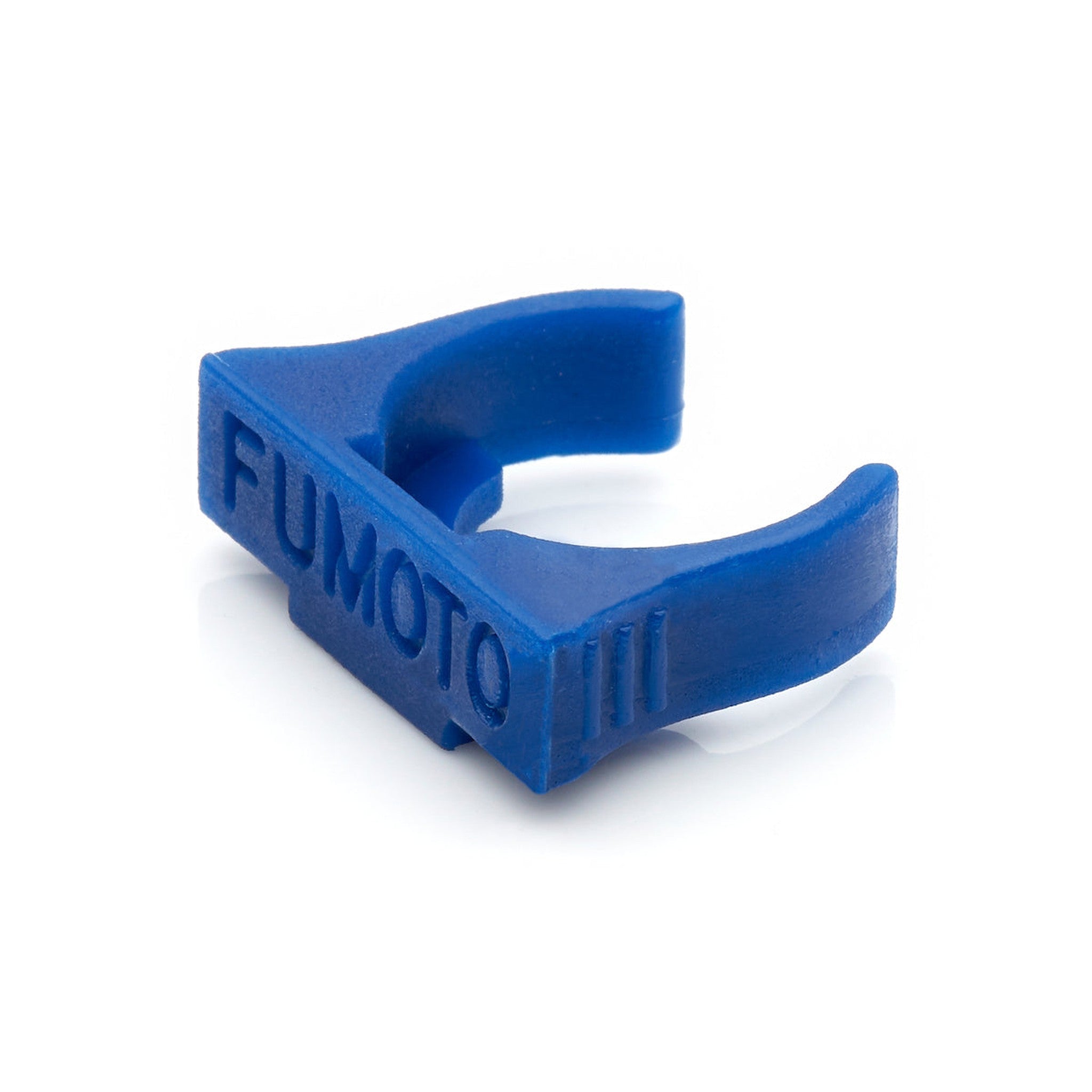

  • The lever clips provide additional security to the valves.
  • The banjo-bolt installation allows more control of the valve position.
  • No more adapters for oil pans with recessions and obstructions.
  • New ergonomic lever for easier valve operation even in tight spaces.
  • All the valves are manufactured by Fumoto's affiliated ISO-certified factory in Japan and leak-tested prior to being shipped.
  • Limited Manufacturer Lifetime Warranty

Specifications:

  • Diameter: 16 mm
  • Thread Pitch: 1.5
  • O-Ring: 16 mm
  • Nipple Dimension: 3/8" inch (10 mm)
  • Nipple Length: 1/5" inch (5 mm)
  • Weight: 5.3 oz

The Fumoto Engine Oil Drain's spring assisted ball valve replaces your standard issue oil drain plug and makes oil changes easier, cleaner, and less time consuming.

  • One Touch Operation.
  • Allows for clean and mess free oil changes.
  • Safely change your oil without contacting hot oil.
  • Eliminates stripped threads and frozen plugs.
  • Simple to install and operate.
  • Reduces time to complete an oil change.
  • Ideal for sampling analysis as a small amount of oil can be drawn without shutting off the engine.





average rating 5.0 out of 5
Based on 27 reviews
  • 5 Stars
    27 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Customer photos and videos
Review posted
Reviewed by Larry J.
Verified Buyer
Rated 5 out of 5

Put this thing on all my cars

Love the ease of use. And cleans up oil changes. Shipping? Fast

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Anthony R.
Verified Buyer
Rated 5 out of 5

Easy install, quality part.

Not sure why I always thought these things were junk. But after 17 oil changes and 17 times I’ve come away with dirty hands, I thought I’d give this a shot. All of my fears were put at ease when I installed it. It’s a nice part and it’s tucked up further than I thought it would be. I think I have a better chance of holing the oil pan than I do of ripping this out. And of course IIR did exactly what they always do; fast, triuble-free shopping experience.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Jacqueline N.
Verified Buyer
Rated 5 out of 5

Super excited

Install was easy. Torque to 18 ft lbs. Got to test briefly with some leftover oil that didn't get to drip out. Can't wait to use this on the next oil change!

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Evan St P.
Verified Buyer
Rated 5 out of 5

Easy install

Now I can just pull a lever to drain my oil. No more crush washers lol

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Nicholas Del G.
Verified Buyer
Rated 5 out of 5

Exactly as described

The fumoto valves we all know and love.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Christopher C.
Verified Buyer
Rated 5 out of 5

Must have for every car

I’ve now put a fumoto valve on an 86 TRD SE, a GR86, and now my vb WRX, and I can’t imagine an easier oil change. Never any leaks, they seem pretty well guarded by the underplating as long as you don’t bottom out in which case you’ve got other issues. I’ve had one delivered for my last 2 cars before filling the gas tank up for the first time. Easily a must have purchase.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Bryan G.
Verified Buyer
Rated 5 out of 5

Where have you been all my life

Now the only tool I need to perform an oil change is myself. This thing sweet. Hope it doesn't leak lol.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Aki L.
Verified Buyer
Rated 5 out of 5

Must have for any vehicle

It's Japanese and it's quality. And I've had Fumoto valves since my 2013 WRX, 2022 Highlander, and now my 2024 WRX TR. It makes oil change better with very little mess. No more crush washers. It's literally installing it and when doing an oil change, you turn it 1/4 turn and the oil comes out. You can slow the initial pour as it's a ball valve inside so you're not dumping hot oil by accident but it's worth every penny. It's an item that over time, it pays for itself. And I'm in the Northeast where road salt during winter eats up everything but this valve always held up as it's brass with stainless parts.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Andrew O.
Verified Buyer
Rated 5 out of 5

Lol, what is there to say?

This is a must have. Even if you don't do your own maintenance, this avoids the struggle of dealing with a bolt.

Loading...
I recommend this product
Was this helpful?
Review posted
Reviewed by Daryl V.
Verified Buyer
Rated 5 out of 5

Amazing oil drain plug replacement

The fumoto oil drain plug has made my oil change so much easier. Highly recommend for subie owners for that easy and mess free oil change.

Loading...
I recommend this product
Was this helpful?
