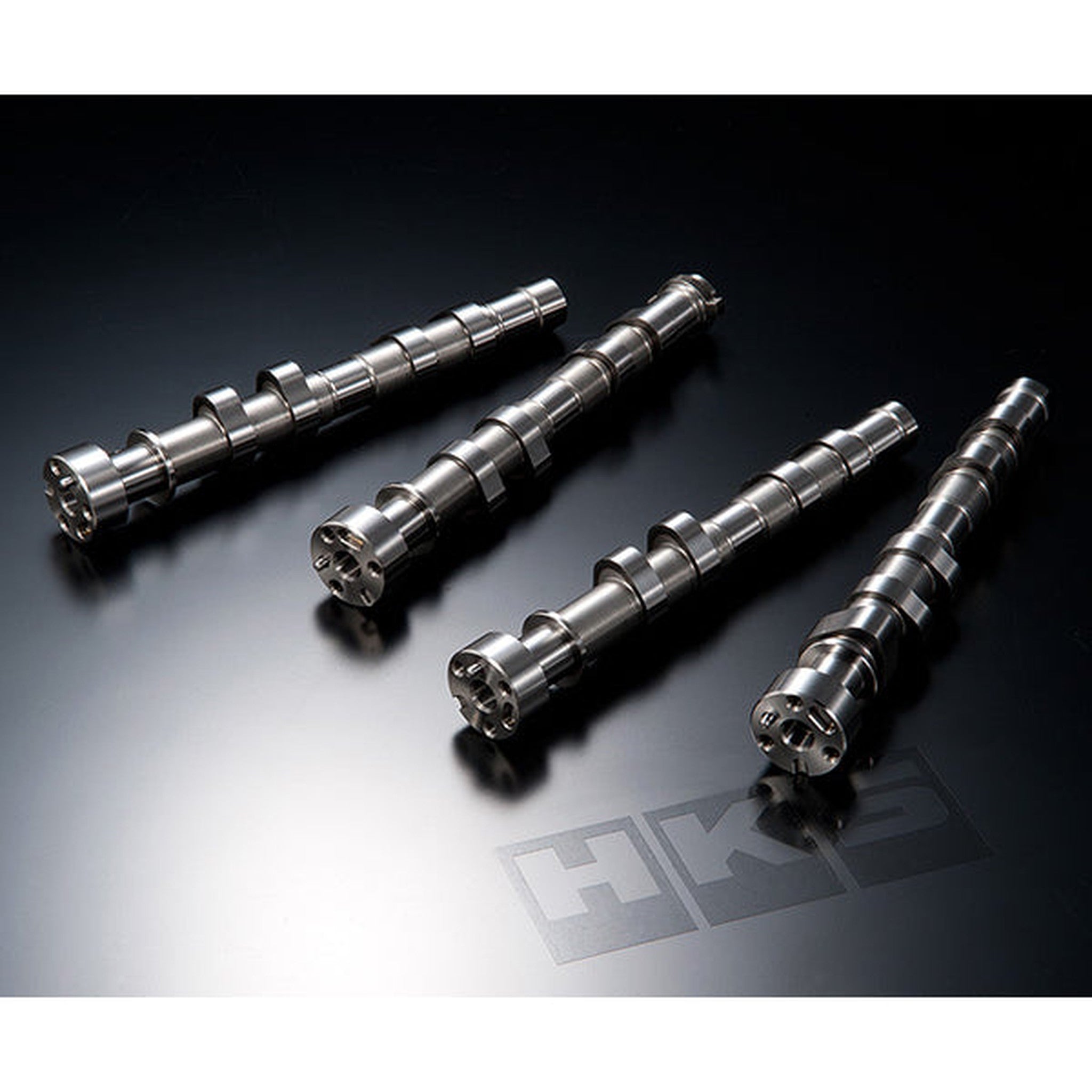

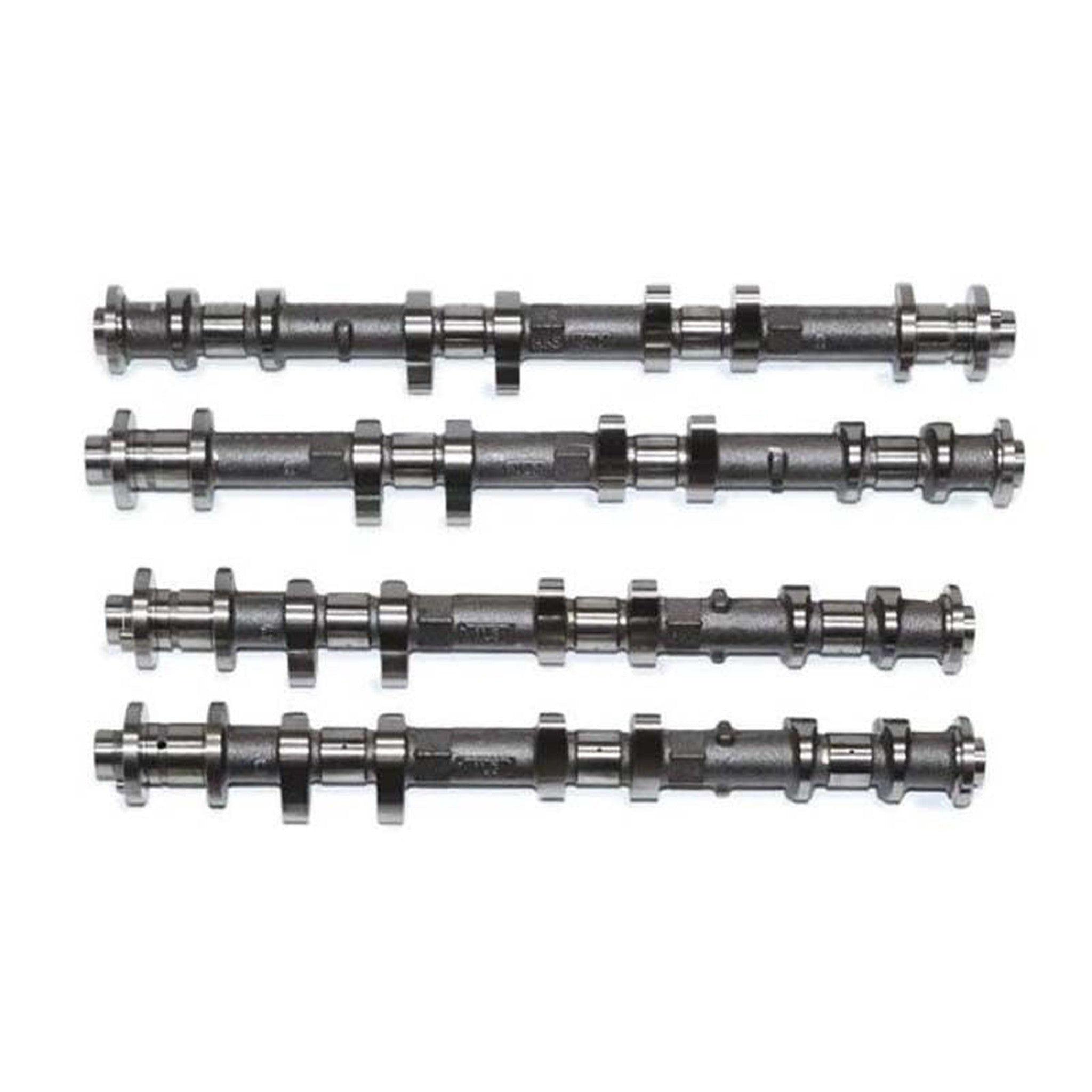

HKS Camshaft Set 260/266 Scion FR-S 2013-2016 / Subaru BRZ 2013-2020 / Toyota 86 2017-2020 | 22002-AT005

Fitment Information:

2013-2016 Scion FR-S

2013-2020 Subaru BRZ

2017-2020 Toyota 86

Features:

• High acceleration and pick-up camshafts were completed by meticulous analysis of the stock rocker structure.
• Cam lobe for the direct injection pump is available so the camshaft can be used the same way as the stock.
• The valve timing is the knock pin is matched to stock cam, so, there is no need for complicated installation.
• Since the stock valve piston clearance is narrow, this camshaft kit was developed to be used with the capacity upgrade kit, and the piston recess was redesigned to enable a 0.7mm lift increase without replacing the springs.
• Both NA and turbo-charged engine users can use this camshaft set.
• Using the stroker upgrade kit together is recommended to achieve optimum performance and keep proper valve clearance.
• Overwhelming power increase can be felt in the high rpm range.

• 1 - Intake Cam Set (each right and left bank)
• 1 - Exhaust Cam Set (each right and left bank)

Specs:

• Intake Cam Duration (260°)
• Exhaust Cam Duration (266°)
• Intake / Exhaust Valve Lift (11.70mm)
• Intake Clearance 0.13±0.03mm
• Exhaust Clearance 0.24±0.03
• Intake VVT Variable Angle ( 68°)
• Exhaust VVT Variable Angle ( 54°)
