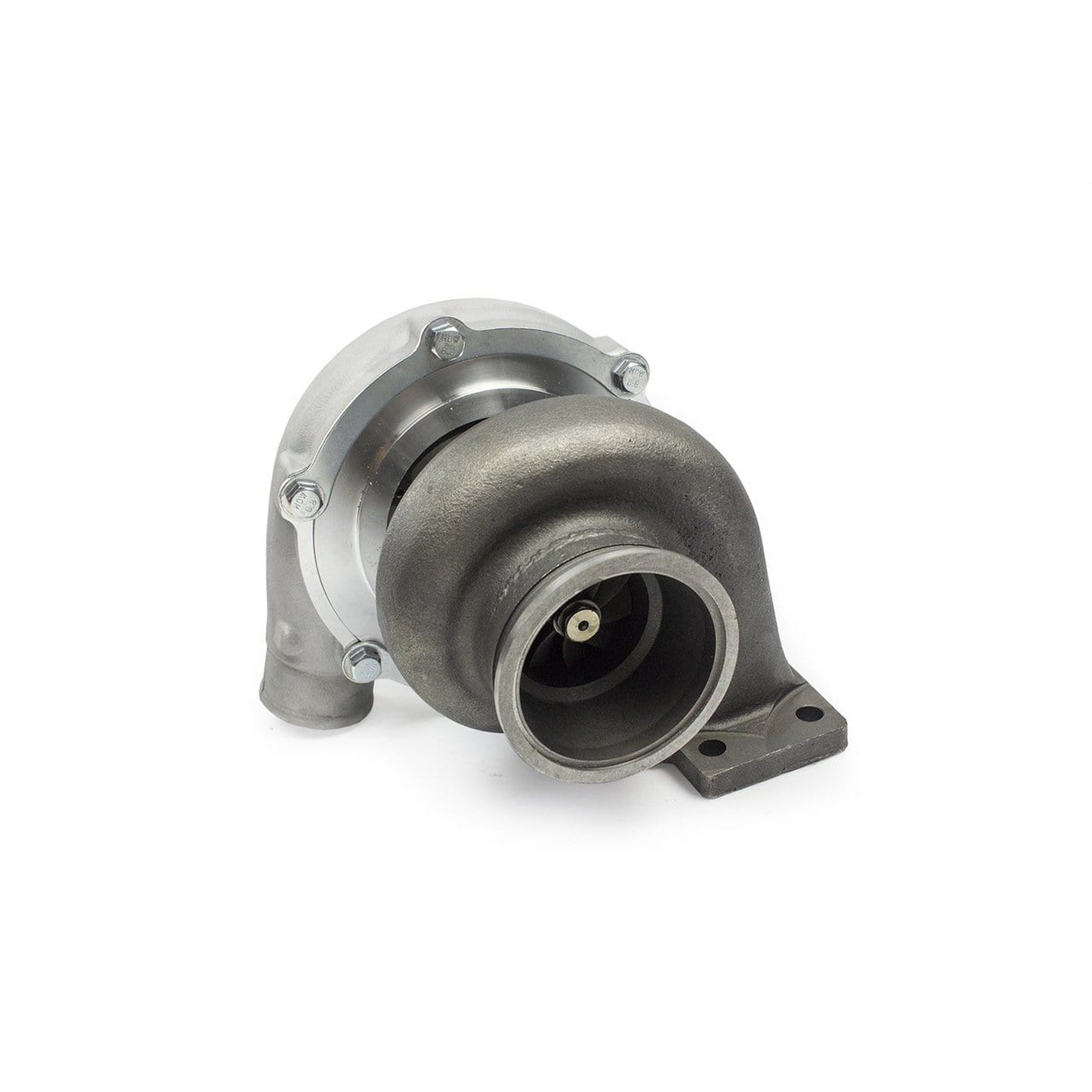

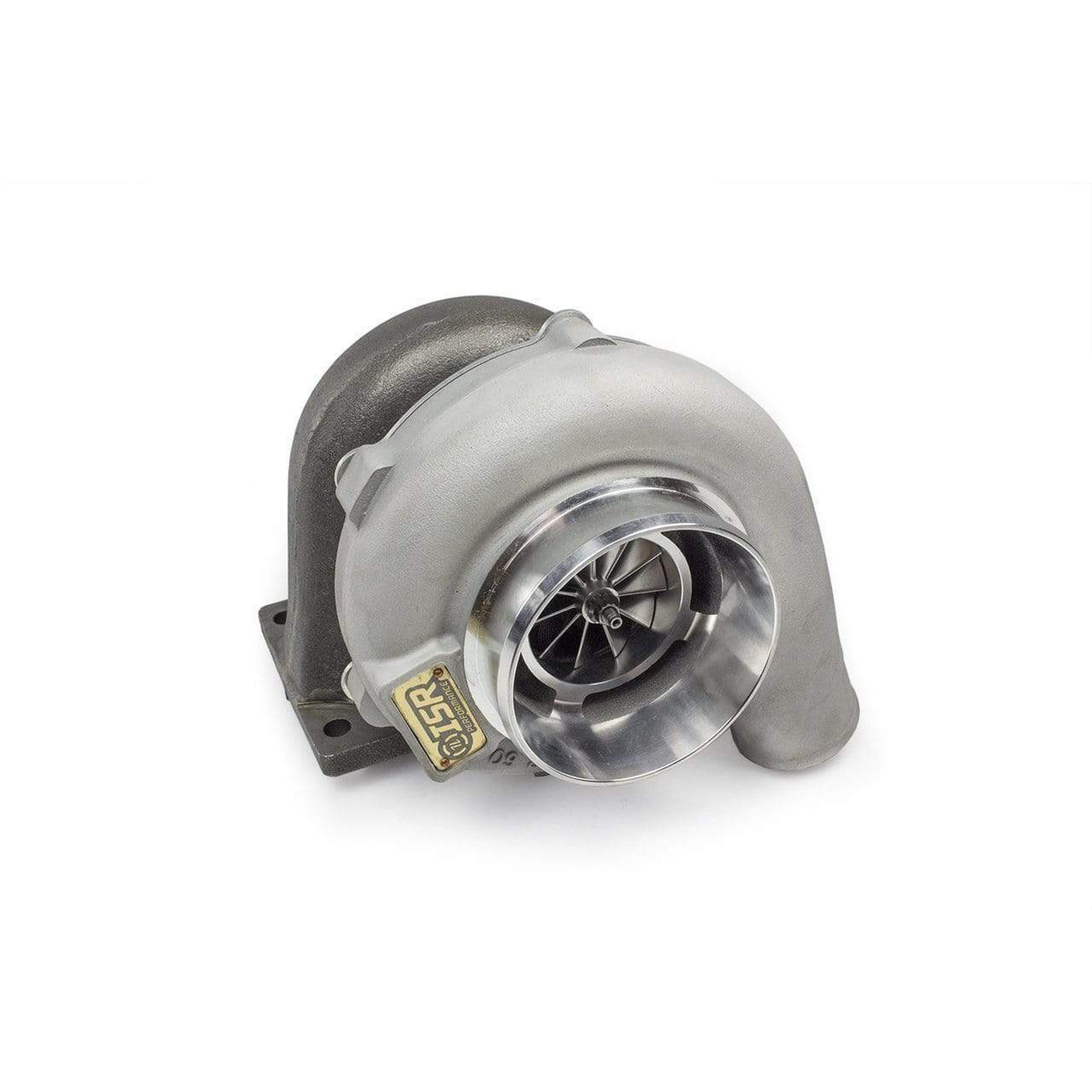

ISR Performance RSX3076 Turbocharger T3 - .82ar Nissan SR20DET

ISR Performance has now added larger frame turbochargers to their turbocharger line. With the quality and success of the smaller T2 replacement turbochargers for the popular SR20DET engines, we have now added larger frame turbos for those looking for more power and wanting to pair an ISR turbo with their top mount manifolds not only to SR's but KA, RB, and JZ engines.This turbo has been equipped with dual ball bearing and billet compressor wheels to help with quick spool and efficient power.

This turbocharger offers big power and great response with proven quality. This turbo features a 90mm vband discharge flange

REQUIRES OIL RESTRICTOR .036" -.040"

Turbo Specifications:

• Compressor side 4" inlet 2" outlet
• Exhaust side 0.82 A/R T3 turbine housing.
• COM WHEEI : IND 58mm, EXD 76mm
• TUR WHEEL : IND 60mm, EXD 55mm
• Dual ball bearing
• GT style drain flange
• Watercooled
• HP RATING : 400-600

we recommend these additional parts.

• Oil Restrictor Part # IS-OR-3036
• Drain flange Part # IS-GTDRN
• Outlet flange Part # IS-FLA-090MM
• Clamp part # IS-CL-090MM

** All ISR Performance Products are Designed for Off Road Use Only *
