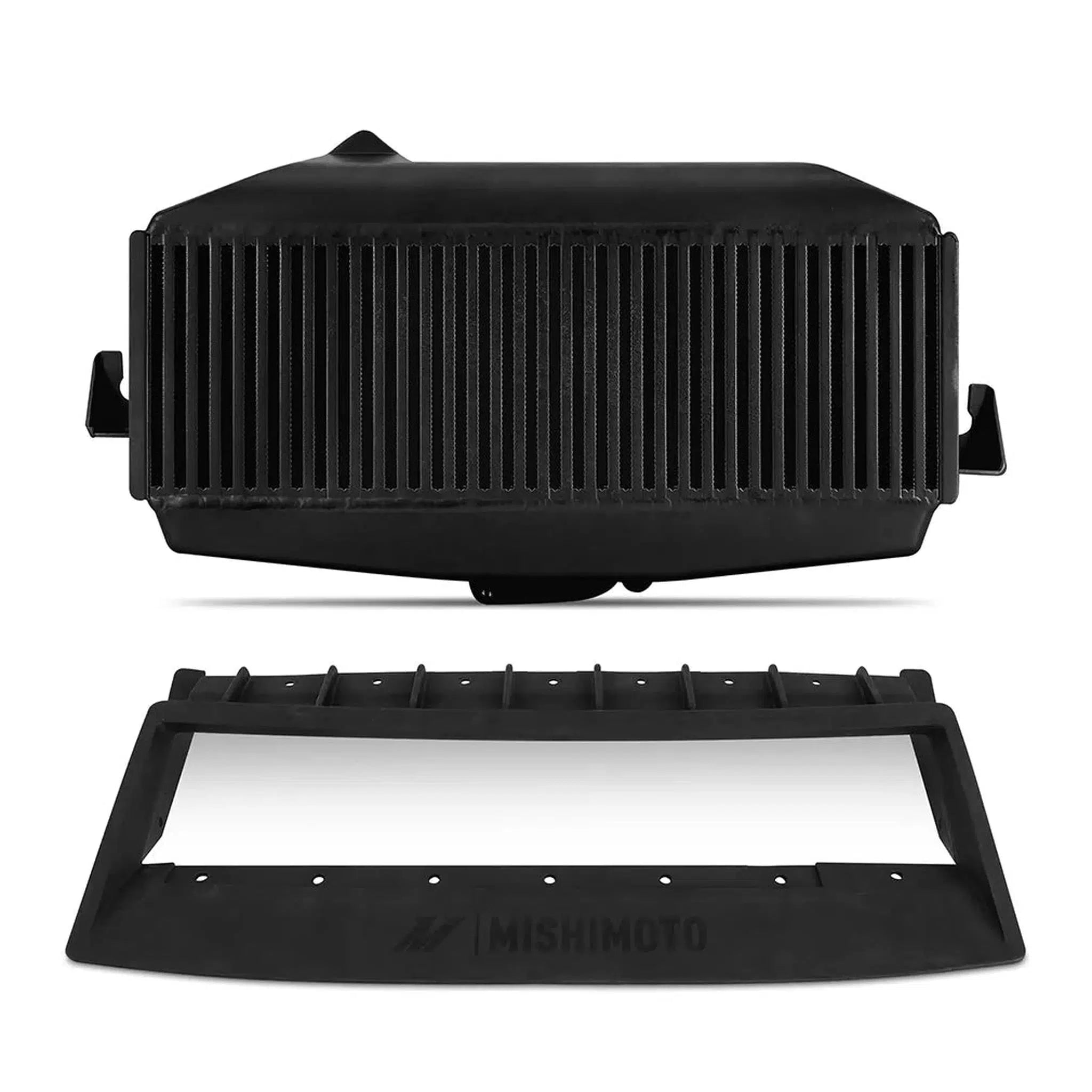

Mishimoto Top Mount Intercooler Subaru WRX 2022-2025 - Black Core | MMTMIC-WRX-22BK

Fitment Information:

2022-2025 Subaru WRX

Features:

One upgrade that's sure to bring your 2022 -2024 WRX to the next level is the Mishimoto performance top-mount intercooler. This top mount intercooler lets your FA24 breathe all the cool boost it could ever want.

The crowning jewel of this kit is our massively upgraded top-mount intercooler and shroud. We've completely revamped the plastic end tank intercooler and replaced it with cast-aluminum end tanks and a high-flow core that's 88 percent larger than stock. The larger core volume allows our intercooler to flow over 40 percent better than stock, taking the strain off your turbo and allowing it to shove more cold air into your engine. We've also added 76 percent more fin surface area to the core, allowing it to transfer heat more effectively and keep outlet temps within 10 degrees of ambient. All those improvements would be for not, though, if we didn't have a way to get cool outside air over the intercooler. To do that, we scaled the intercooler shroud up to expose the entire core to fresh air from the WRX's signature hood scoop. A pre-drilled, tapped, and plugged 1/8-NPT port allow you to easily add temp or boost pressure sensors.

This kit includes everything needed for installation, including new shroud hardware. It's available in black to match any color scheme and, with our Mishimoto Lifetime Warranty, you can drive your WRX at ten-tenths knowing Mishimoto has its and your back.

• Intercooler Core powder-coat finish: Stealth Black

• Shroud color: black

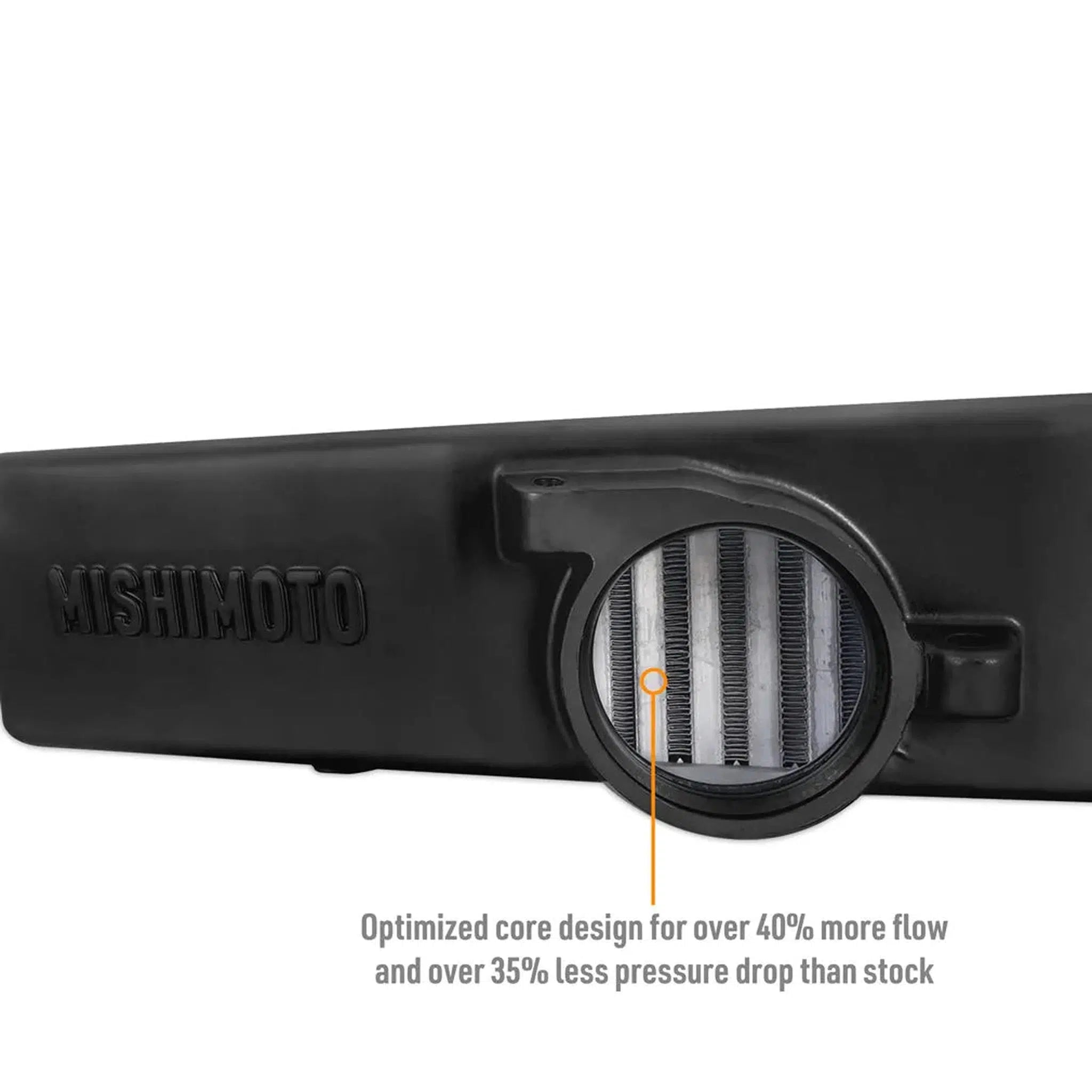

• Bar-and-plate core reduces restriction by 40.6% for improved efficiency

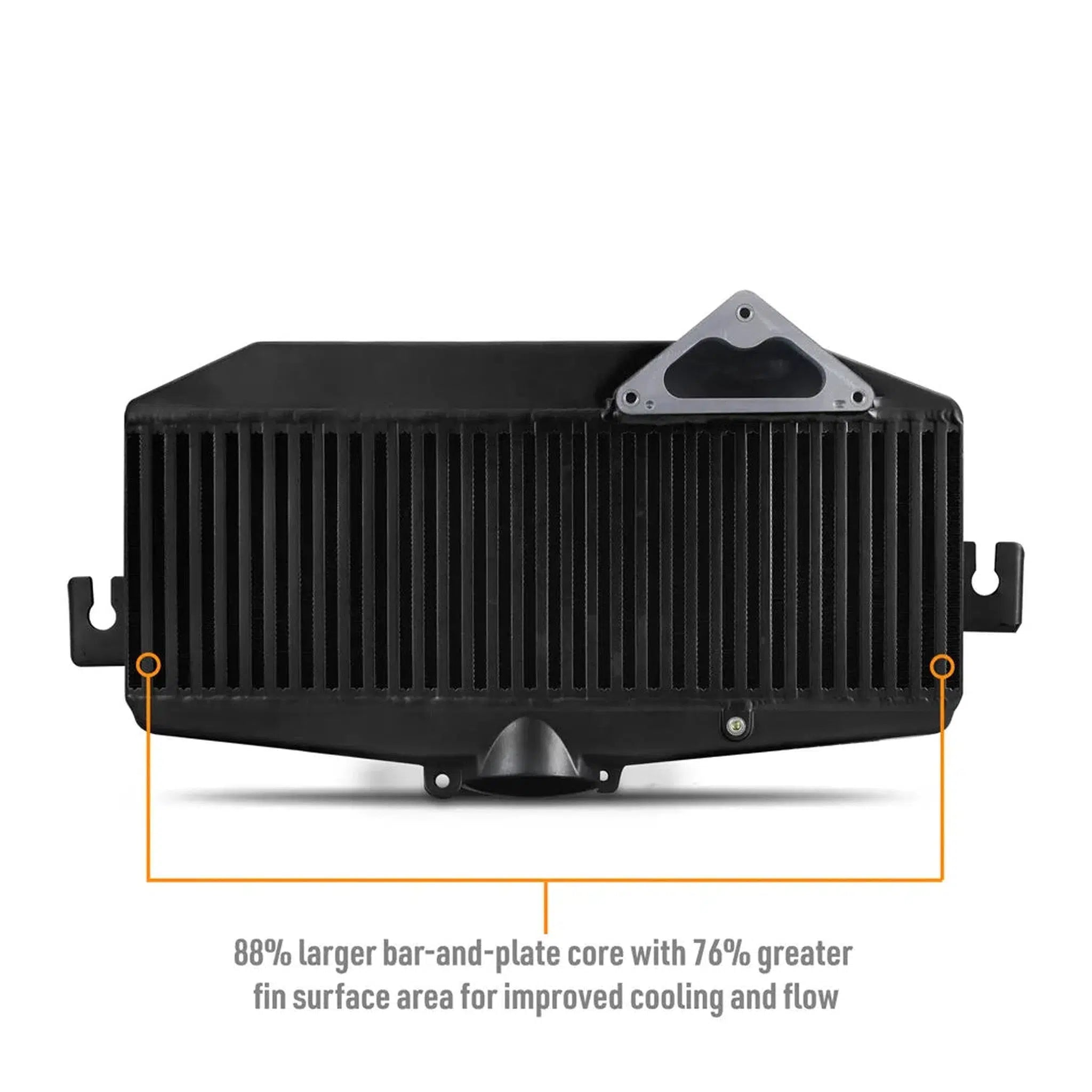

• 88% increase in core volume for improved cooling efficiency
• Lowers outlet temps to less than 10 degrees over ambient for safe performance
• 35.7% less pressure drop than stock means more boost makes it into the engine
• 76% increase in fin surface area for superior heat transfer

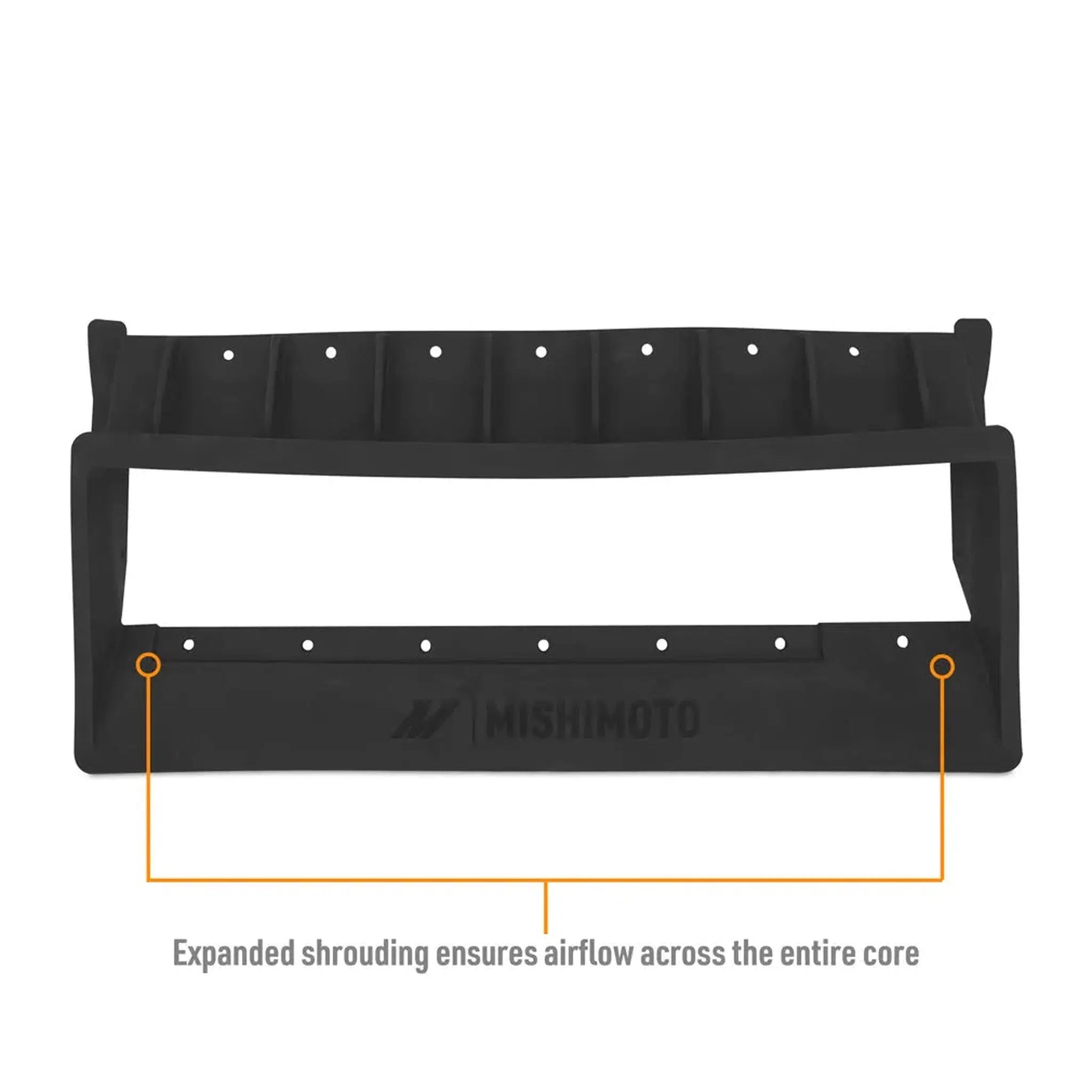

• Includes expanded shrouding for maximum airflow and coverage

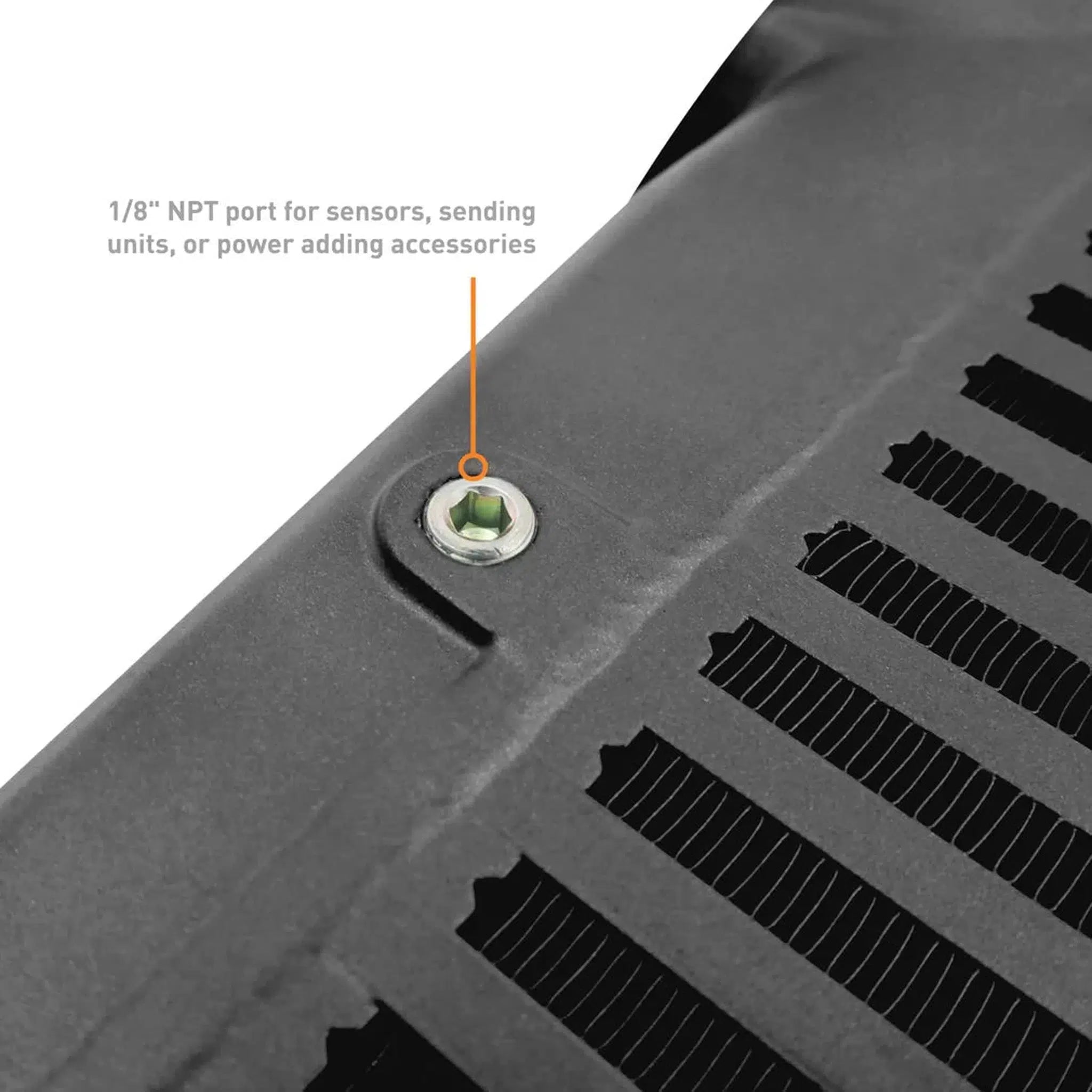

• Cold-side tank include 1/8-NPT port for boost or temp sensors
• Cast aluminum end tanks reduce failure points for high boost applications
• Includes everything needed for installation, including shroud hardware
• Direct fitment
• Mishimoto Lifetime Warranty

Specs:

• Maximum Recommended Boost Pressure: 100psi
• Maximum Recommended Horsepower: 600
• Overall length: 24.51 inches
• Overall height: 12.96 inches
• Overall width: 4.38 inches
• Core type: Bar-and-Plate
• Core thickness: 4 inches
• Core length: 20.5 inches
• Core height: 7 inches

What's in the Box?

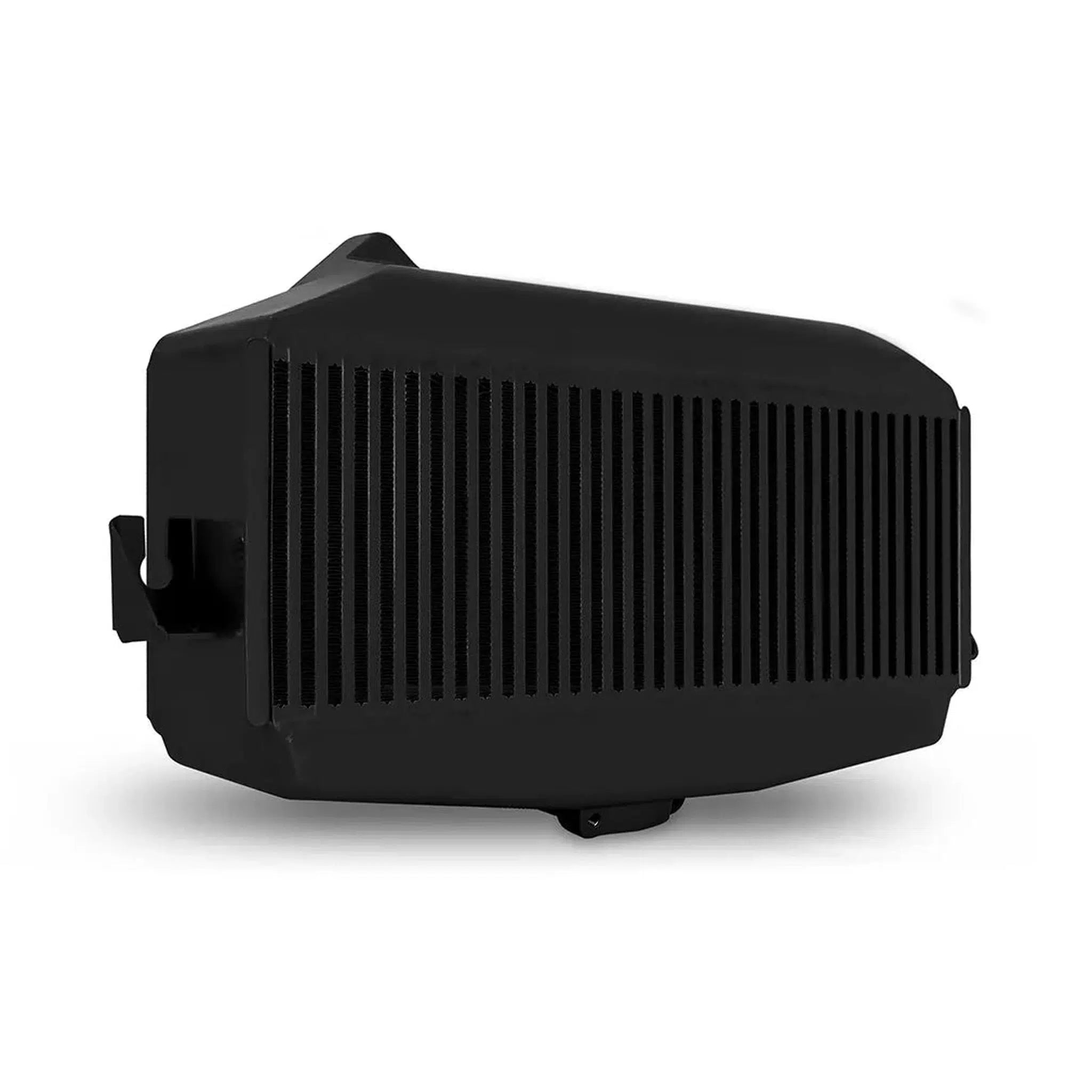

• (1) Mishimoto Performance Intercooler

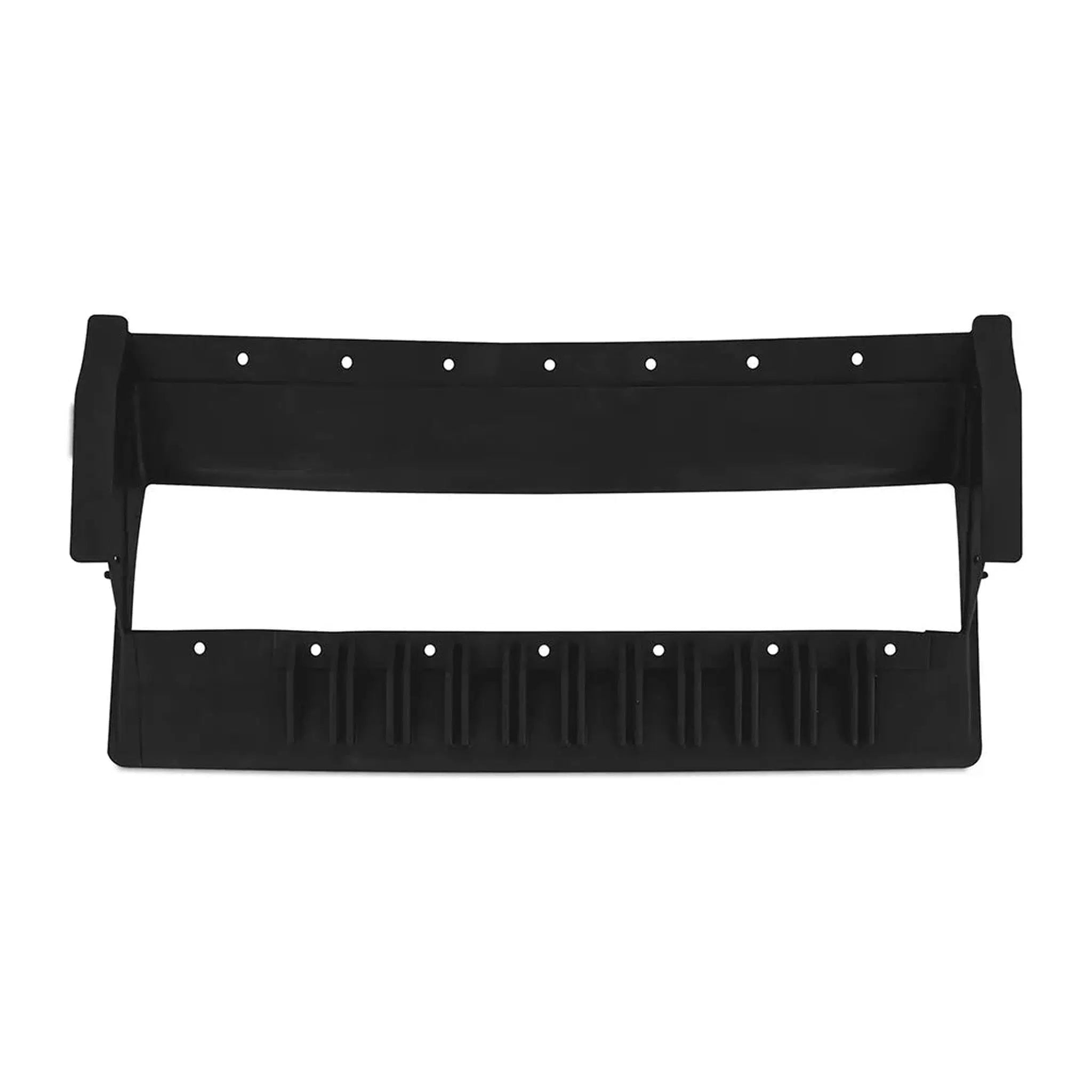

• (1) Mishimoto Intercooler Shroud

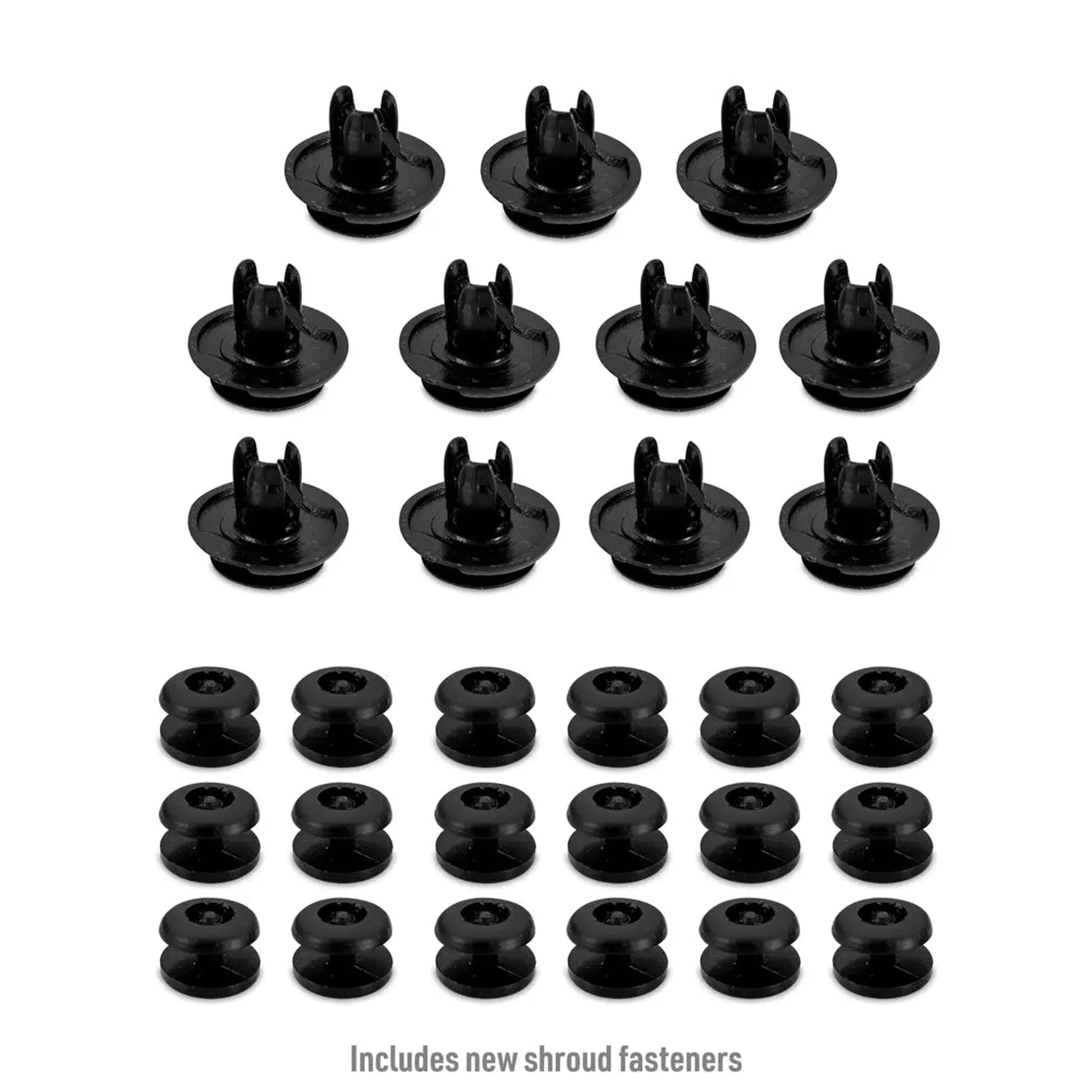

• (36) Shroud Plastic Rivets
• (11) Shroud Mount Panel Clips

Installation note: Upon removal of factory intercooler, inspect the OEM inlet gasket and replace with the OEM Subaru part number 21896AA150 if any areas appear damaged or warped.
