Radium Dual Port Injection (DPI) Fuel Rails Subaru WRX 2002-2014 | 20-0499

Fitment Information:

2002-2014 Subaru WRX

Note: For use with Radium Fuel Rail Housings Only

Features:

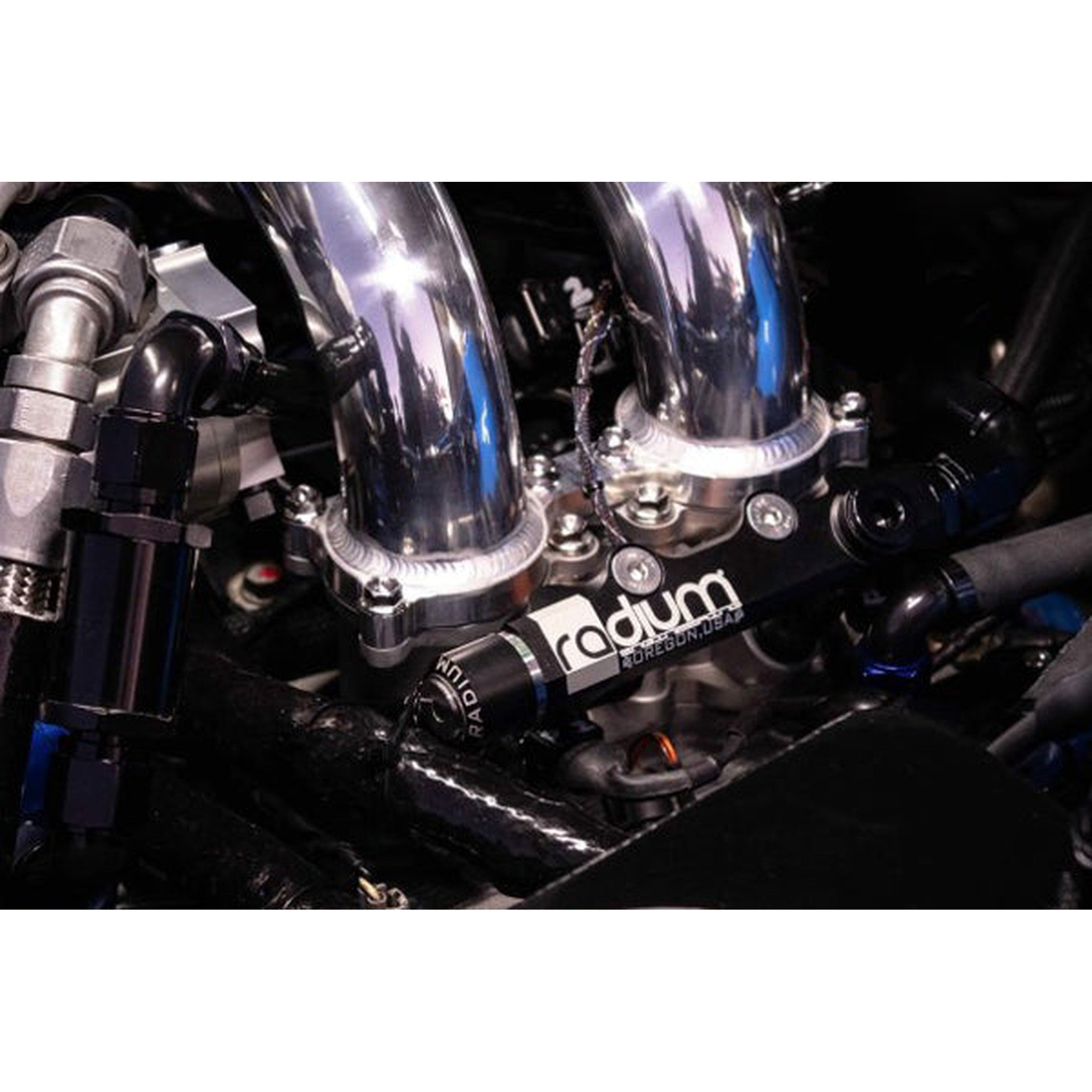

These Radium dual port injection (DPI) fuel rails were designed specifically for the Radium fuel rail housings and are NOT compatible with any others on the market. The rails are manufactured with large 10AN ORB end ports. These fuel rails can support all necessary engine power requirements. The top auxiliary ports are threaded with 8AN ORB for ancillary accessories.

Primary Lower Fuel Injectors
Using the provided adapters, both OEM Subaru or 60mm Bosch EV14 style fuel injectors can be used. To reuse the OEM Subaru injectors, the provided top hat must be installed over the upper OEM injector O-ring.

Secondary Upper Fuel Injectors

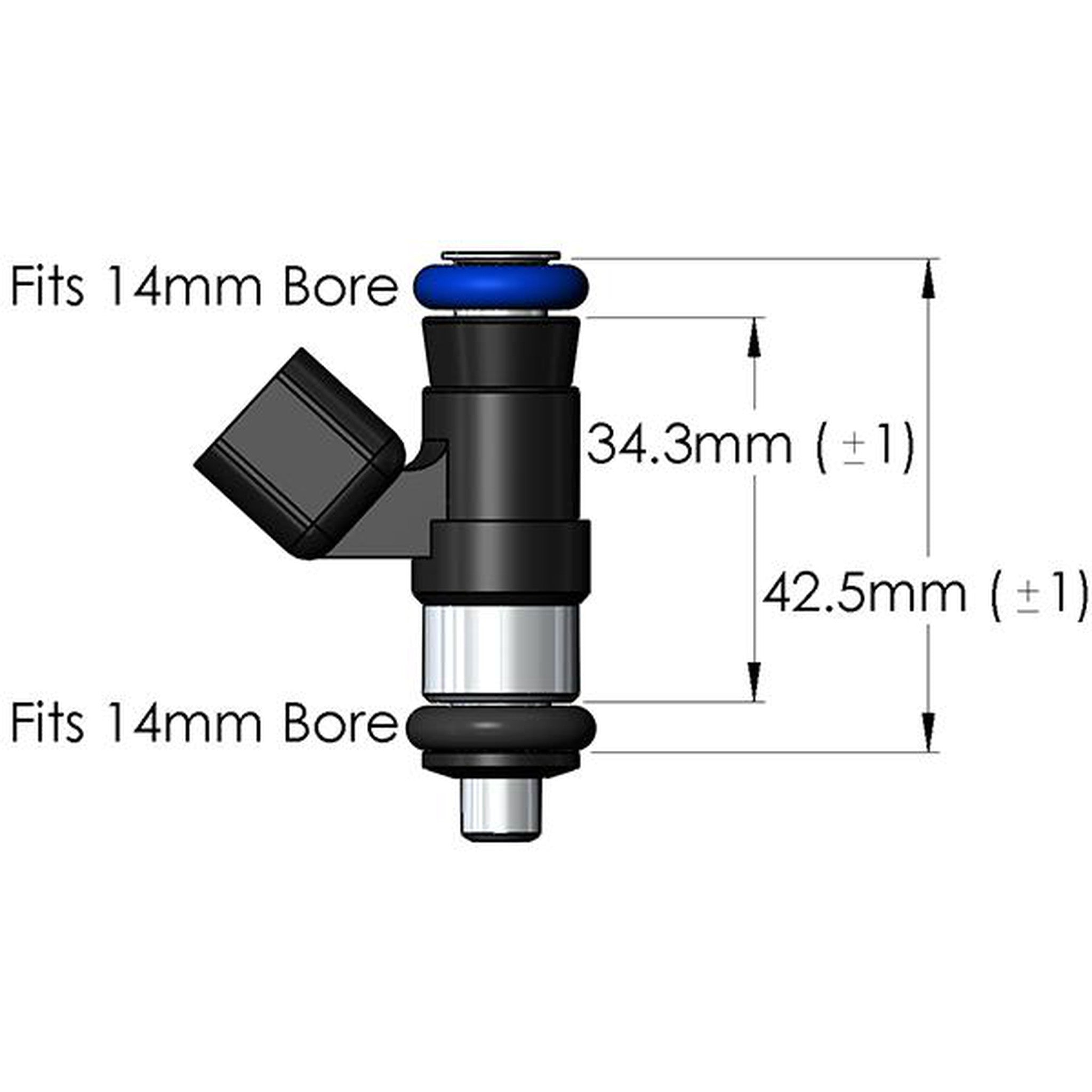

Only 34mm Bosch EV14 style fuel injectors can be used. Fortunately, many Subaru owners are currently already using Injector Dynamics XXXX.48.11.WRX fuel injectors. If the upper and lower billet caps are pulled off, the base injector is a 34mm Bosch EV14 which can be used. Below are the compatible secondary upper injectors.

• CNC machined from solid 6061 aluminun
• Black anodized finish
• Laser engraved for a high quality surface finish
• Compatible with all fuel types including alcohol mixtures such as E85
• Each fuel rail has 4 injector ports that are machined to permit injectors with 14mm O-rings
• Installation Directions

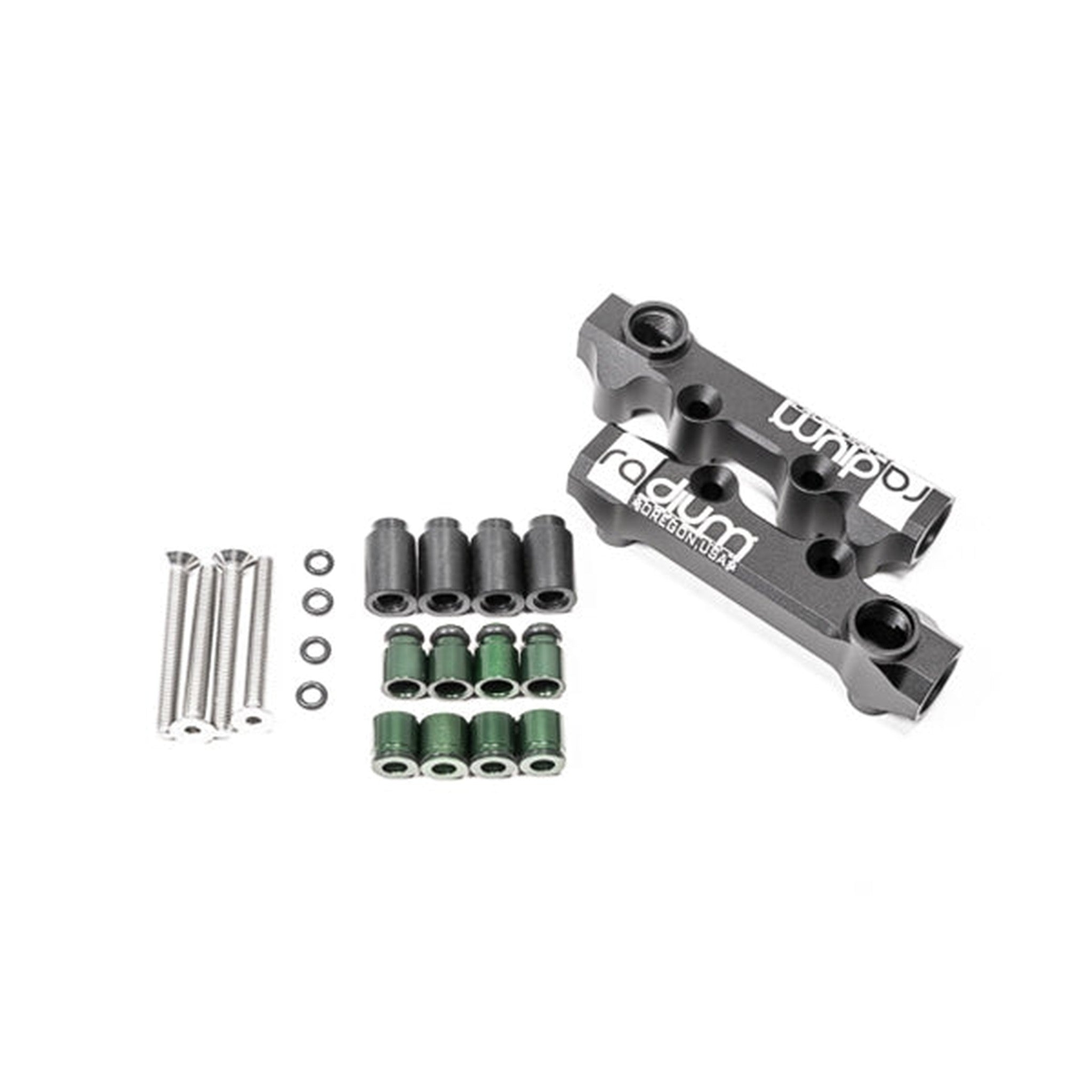

What's Included:

• Black Laser Etched Aluminum Fuel Rails (x2)
• Injector Seats for Aftermarket Injectors (x4)
• Injector Hats with Filter Screens for OEM Injectors (x4)
• Thermal Insulating Press-In Spacers (x4)
• Stainless Steel Hardware
• FKM O-ring Seals
